Stainless Crash Rail2181C.3 Tube Bkts

Product Details

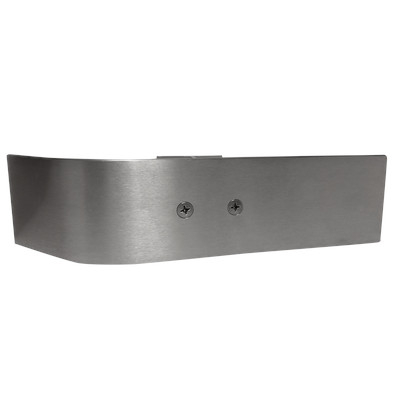

Recycled Content, Stainless Steel ProductsStainless Steel Crash Rail |  3" width | Perfect for clean rooms as well as biological and hospital settings | Approval drawing for each order | Custom Designed For Each Facility | Each Piece Coded for Easy Installation


Stainless Steel Crash Rail - 3" Wide - Customized Lay-Outs Done - Click Here for a Quote


  • Type 304 stainless steel standard
  • 1/4" thick x 3" wide
  • Tube brackets (standard)
  • Exposed fasteners (standard) or Hidden Fasteners
  • Maximum continuous length 142" L
  • Continuous inside and outside corners
  • Custom fabricated, marked for installation per your specifications
  • Approval drawing prepared before fabrication begins

Available Crash Rail Brackets from

  Standard Bracket Fasteners   Hidden Bracket Fasteners
Rail Width I-Beam Z-Bracket Tube Bracket   I-Beam Z-Bracket Tube Bracket
2" N/A N/A 2181.2   N/A N/A N/A
3" 2181.3 2181B.3 2181C.3   2181D.3 2181E.3 N/A
4" 2181 2181B 2181C   2181D 2181E N/A
6" 2181.6 2181B.6 2181C.6   2181D.6 2181E.6 N/A


1.  I-Beam bracket is always clear anodized aluminum.  Its length is sized to accommodate the rail width.

2.  Z-Bracket is fabricated from 1/8" thick stainless steel bar stock.  The bar stock width is selected to accommodate the rail width.

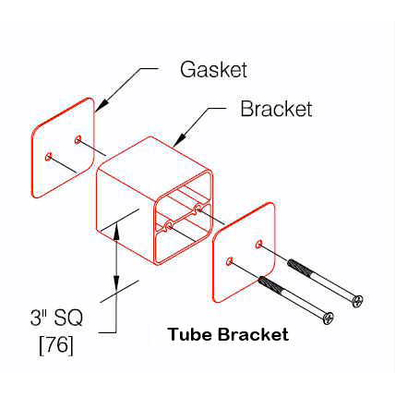

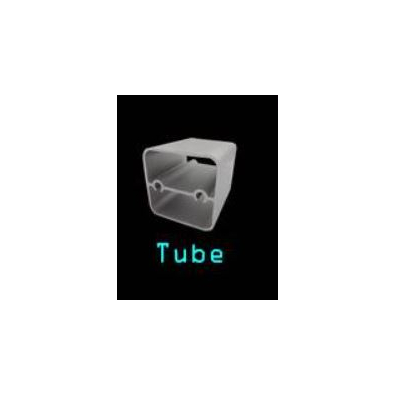

3.  Tube Bracket is always clear anodized aluminum.  It is not available for hidden fastening.

4.  Standard bracket fastening is to drill and countersink for flat head mechanical fasteners.

6.  Hidden bracket fastener for stainless rail is a welded threaded stud.



 Contact us for Pricing

This crash rail is also available in aluminum, Protector Series 2180 .


Warning California Customers: Visit State of California website: for more information regarding Proposition 65. This product may expose you to chemicals including Chromium-Hexavalent, which is known to the State of California to cause cancer or developmental toxicity.

2181C.3 - 3" Rail Tube Bracket Tech Sheet (2181C_3.pdf, 339 Kb) [Download]

2181C.3 - Specifications (2181C.3_Specifications.pdf, 103 Kb) [Download]
