2180C.6 - 6" Aluminium Rail -Tube Brackets

$73.25

Aluminum Crash Rail | 6" wide bar Clear Anodized Finish | Approval Drawing Before Fabrication Option Available | Custom Fabrication - Non-Returnable

CONTACT US FOR PRICING FOR FULL ROOMS WITH CORNERS


For a specific length, order the next size up and specify your length(s) in the Order Note box at Checkout.
+

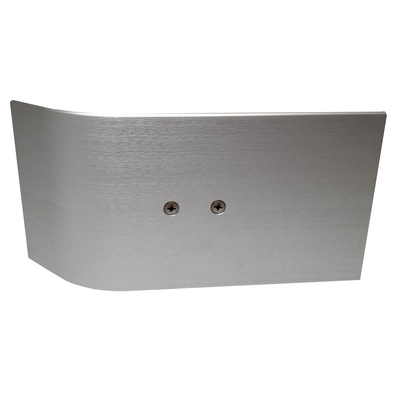

2180C.6 Aluminum Crash Rail - 6" High - Straight Run with Two Returns - Select Your Length-Tube Bkts

  Clear Anodized Finish or Mill Finish

  • 1/4"thick x 6" high

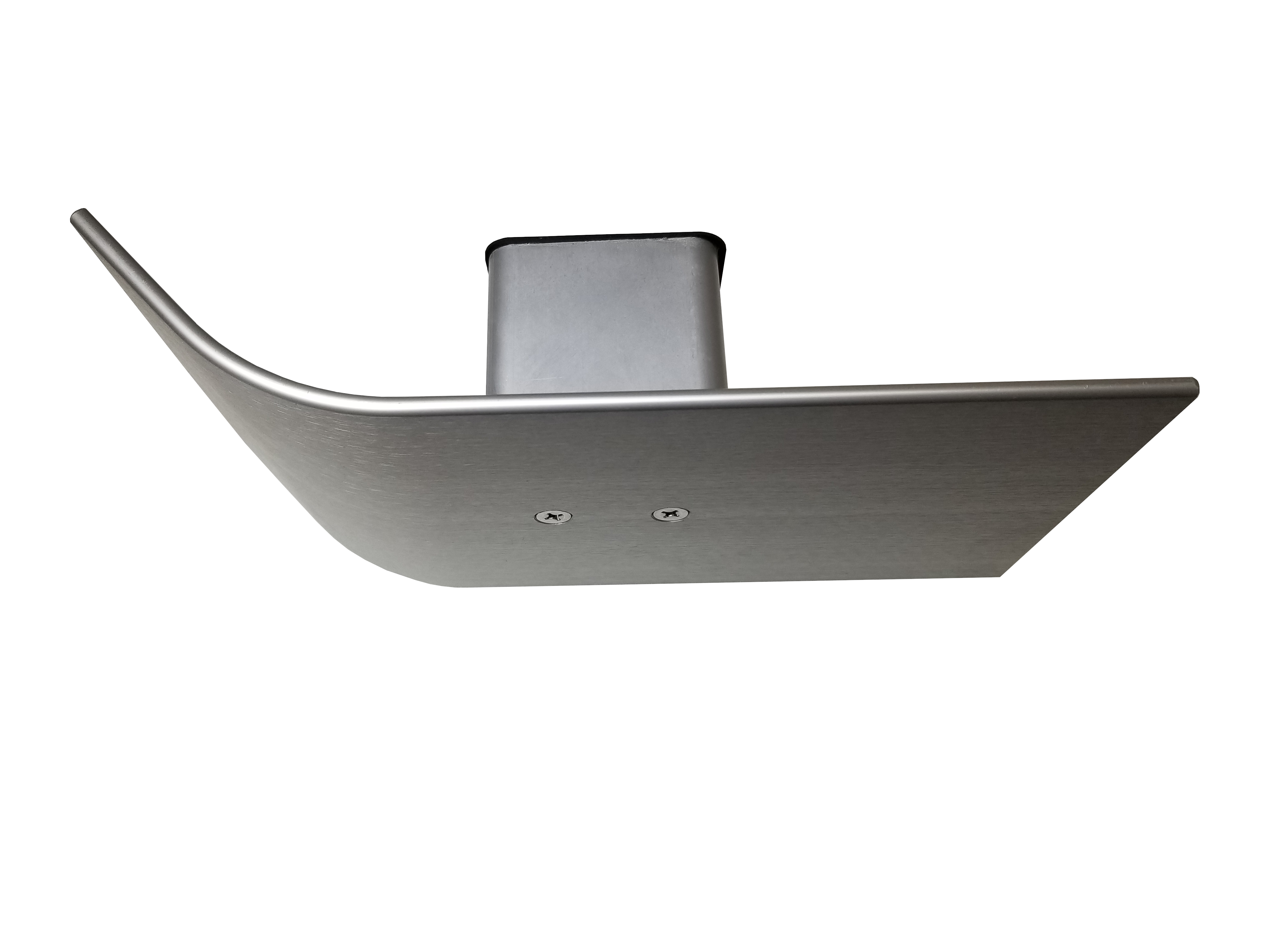

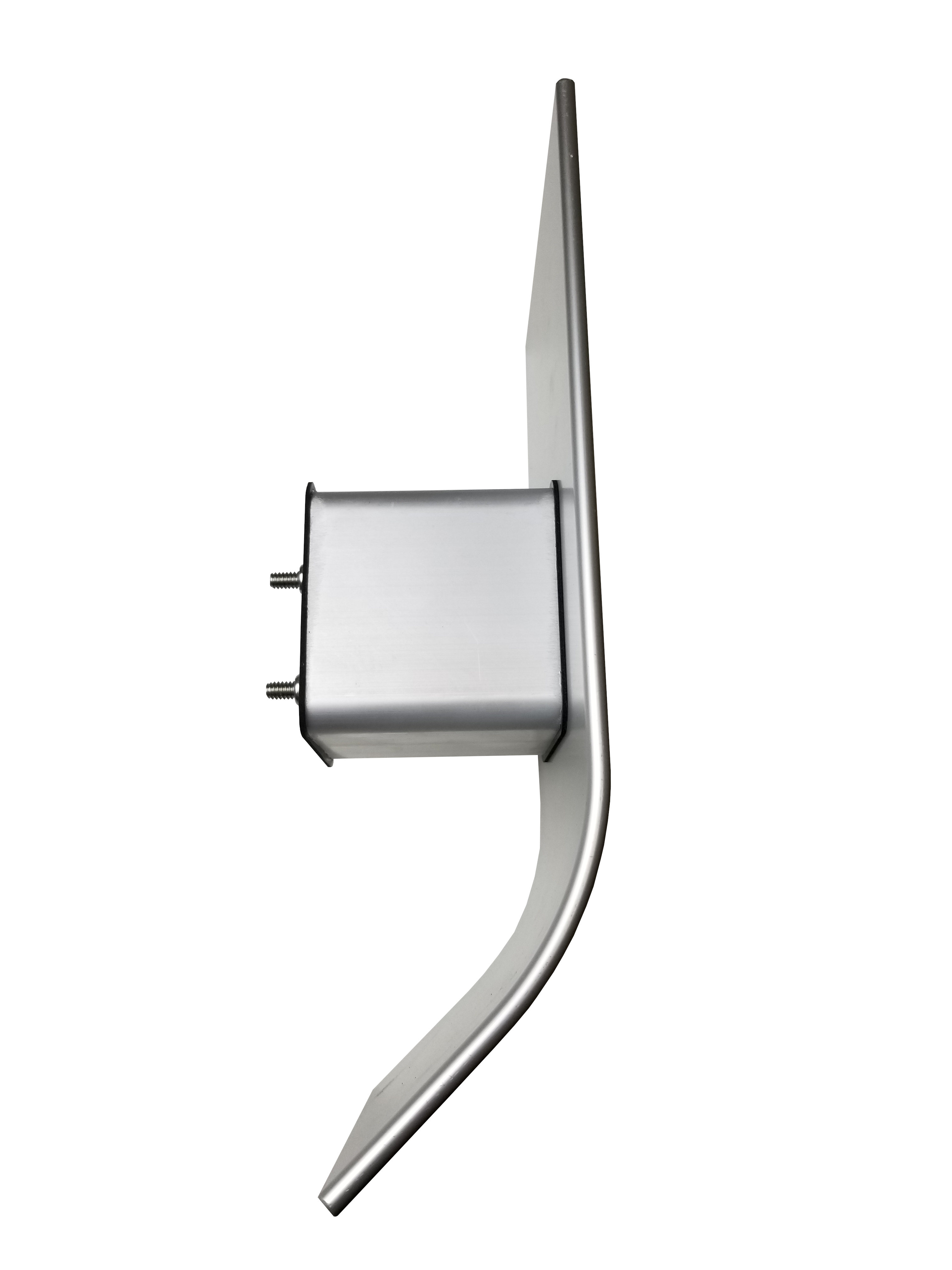

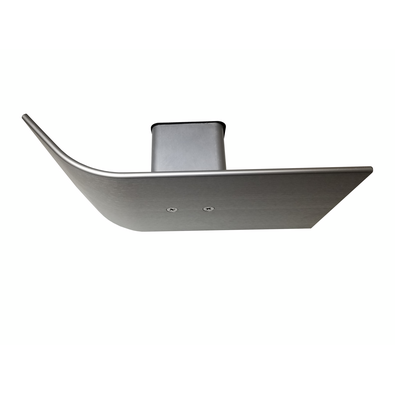

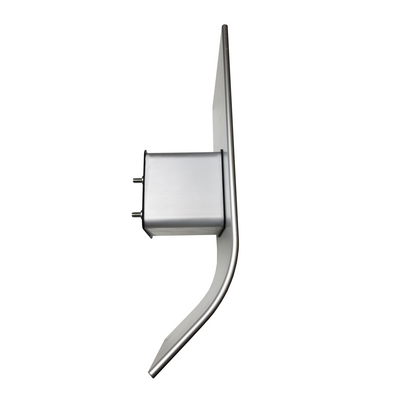

  • Tubebrackets (standard)
  • Exposed Fasteners (standard) or Hidden Fasteners
  • Maximum Continuous Length: 12 ft.

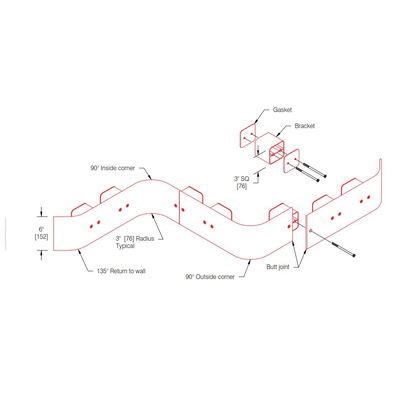

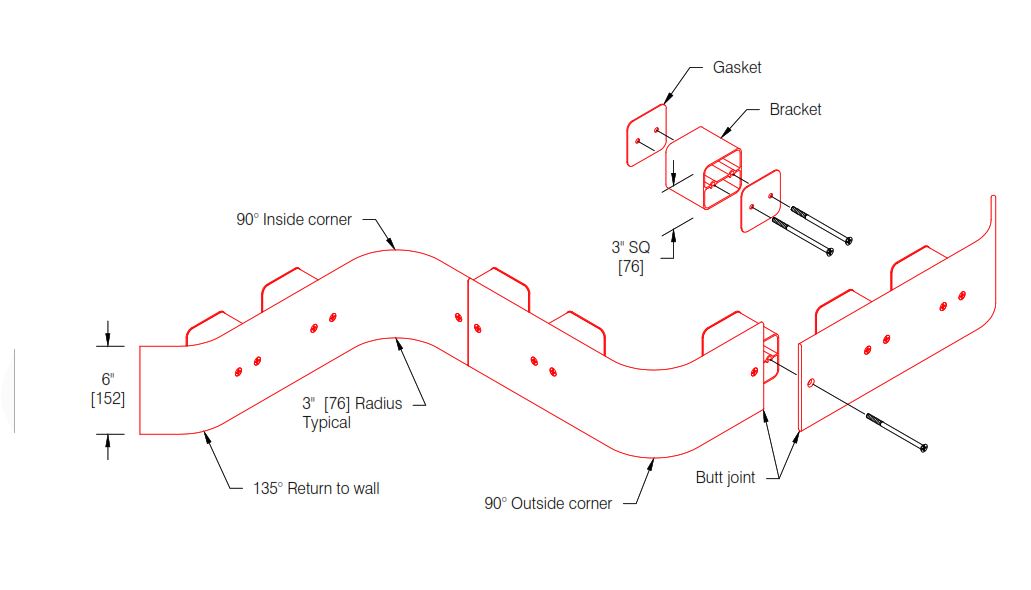

  • Continuous inside and outside corners
  • Custom fabricated, marked for installation per your specifications
  • Approval drawing prepared before fabrication begins

Available Crash Rail Brackets from Wallguard.com

  Standard Bracket Fasteners   Hidden Bracket Fasteners
Rail Width I-Beam Z-Bracket Tube Bracket   I-Beam Z-Bracket Tube Bracket
3" 2180.3 2180B.3 2180C.3   2180D.3 N/A N/A
4" 2180 2180B 2180C   2180D N/A N/A
6" 2180.6 2180B.6 2180C.6   2180D.6 N/A N/A

Footnotes:

1.  I-Beam bracket is always clear anodized aluminum.  Its length is sized to accommodate the rail width.

2.  Z-Bracket is fabricated from 1/8" thick stainless bar stock.  The bar stock width is selected to accommodate the rail width.

3.  Tube bracket is always clear anodized aluminum.  It is not available for hidden fastening.

4.  Standard bracket fastening is to drill and countersink for flat head mechanical fasteners.

5.  Hidden bracket fastener for aluminum rail is 3M VHB (Very High Bond) adhesive tape.

Contact us for Pricing

 Warning California Customers: Visit State of California website: www.P65warnings.ca.gov for more information regarding Proposition 65. This product may expose you to chemicals including Chromium-Hexavalent, which is know to the State of California to cause cancer or developmental toxicity.

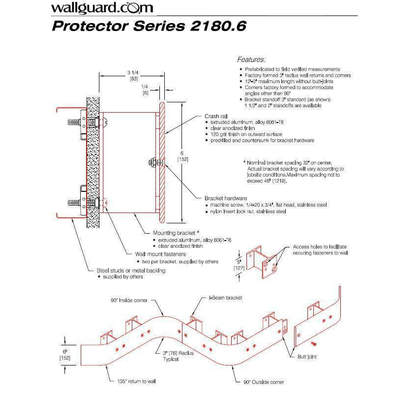

2180C.6 Tech Sheet 6" High w/ Tube Bkt (2180C_6.pdf, 87 Kb) [Download]

2180C.6 Specifications (2180C.6.pdf, 14 Kb) [Download]

Installation Instructions (2180_Installation.pdf, 107 Kb) [Download]
